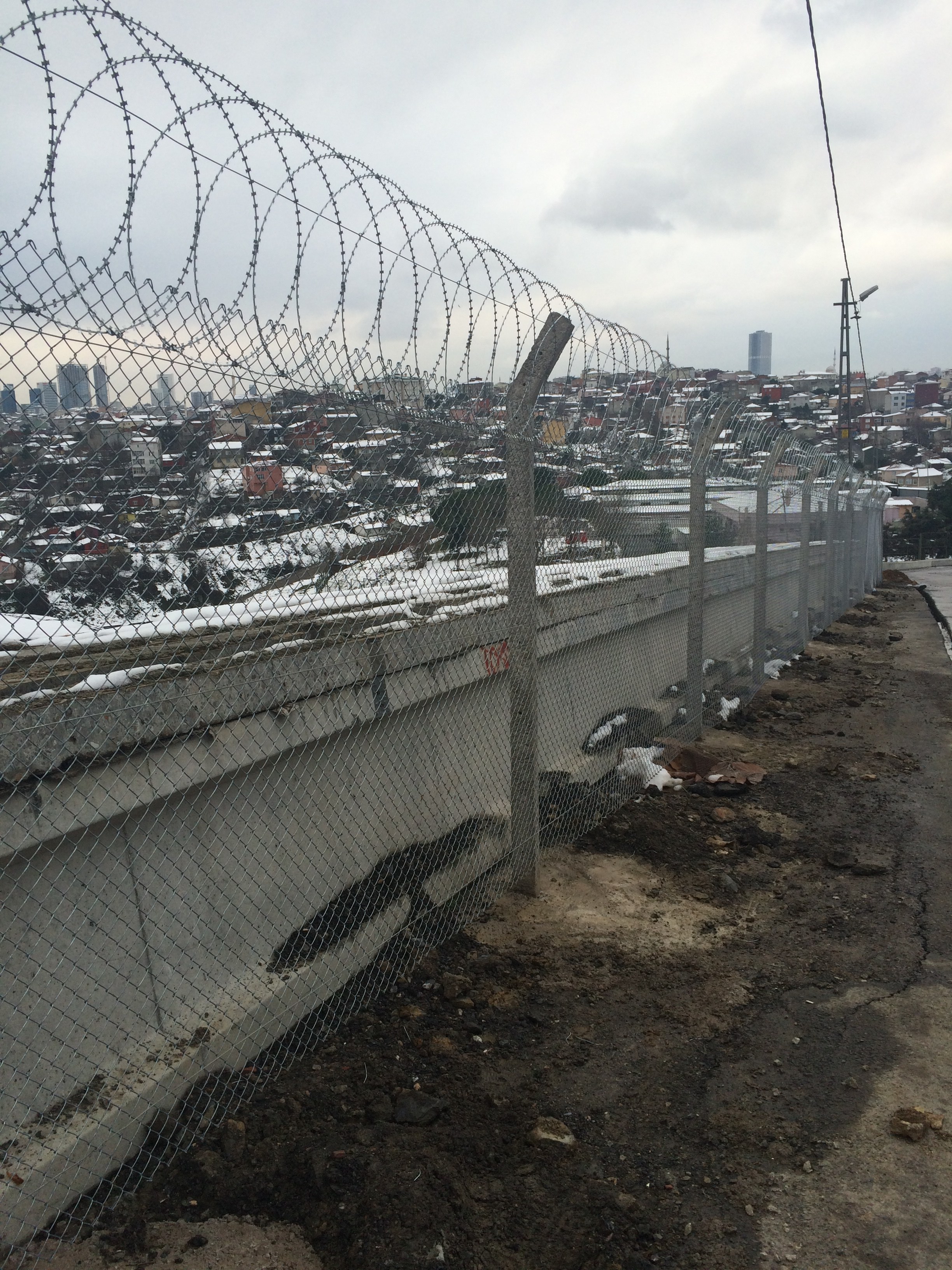

Concrete Post Mesh Wire And Barbed Wire Applications

The combination of concrete pole, mesh wire and barbed wire systems provides both economical and effective environmentalization and safety solution. Provides long-term resistance in different terrain types and climate conditions. ORTEL applies this combination from discovery to assembly.

Applications

Agricultural LandsForest LimitsIndustrial ZonesResidential EnvironmentsHighway EdgesMilitary Areas

System Advantages

Combination of concrete pole and mesh wire; provide long-term strength with low cost.
Safety level is easily increased with barbed wire added to the top.
Suitable for application in sloped and irregular terrains.
Galvanized coating protects all metal elements from corrosion.

2.00 Meter Fence Plant Application

Post Spacing	Mesh Wire Height	Tension Wire	Bracing	Foundation Size	The remaining net on the soil
3 m	1.50 m	3 Rows	45m + Corners	40x40x50cm	1.50 m

2.00 Meter Fence Plant — Barbed Wire

Post Spacing	Bracing	Foundation Size	Barbed wire straight/diagonal	The remaining net on the soil
3 m	45m + Corners	40x40x50cm	6 straight / 2 cross	1.50 m

2.40 Meter Fence Plant Application

Post Spacing	Mesh Wire Height	Bracing	Tension Wire	Foundation Size	The remaining net on the soil
3 m	1.50 m	45m + Corners	3 Rows	40x40x50cm	1.90 m

2.40 Meter Fence Plant — Barbed Wire

Post Spacing	Bracing	Foundation Size	Barbed wire straight/diagonal	The remaining net on the soil
3 m	45m + Corners	40x40x50cm	8 flat/2 cross	1.90 m

3.00 Meter Fence Plant Application

Post Spacing	Mesh Wire Height	Bracing	Tension Wire	Foundation Size	The remaining net on the soil
3 m	1.50 m	45m + Corners	3 Rows	50x50x50cm	2.50 m

3.00 Meter Fence Plant — Barbed Wire

Post Spacing	Bracing	Foundation Size	Barbed wire straight/diagonal	The remaining net on the soil
3 m	45m + Corners	50x50x50cm	10 straight / 2 cross	2.50 m
